800LE Self-Propelled Floor Grinder

SKU: N/A Categories: ,

800 LE Self-Propelled Floor Grinder And Versatile Polisher With Gear-Driven

800 LE Self-propelled floor grinder and versatile polisher are used to grind (rough grind, fine grind, and polish) concrete, natural stone and terrazzo floors or other materials. With a self-propelled function, it realizes higher grinding efficiency with lower labor costs. The design of the planetary rotating system makes the grinding effect uniform and stable.

Specifications



Model 800 LE Multifunctional Self-propelled Concrete Terrazzo Floor Grinder
Voltage 220V3 phase 380V 3 phase
Current 55.55A 32.23A
Working width 800mm
Grinding disc 256mm*4
Rotating speed 450-1950rpm
Frequency 50/60Hz
Motor power 15KW/20HP
Inverter power 15KW/20HP
Configuration WEG motor+ Delta/Veichi inverter
Weight 556kg
Extra weight 30kg x 2
Water tank 39L
Packing size 147*88*132cm

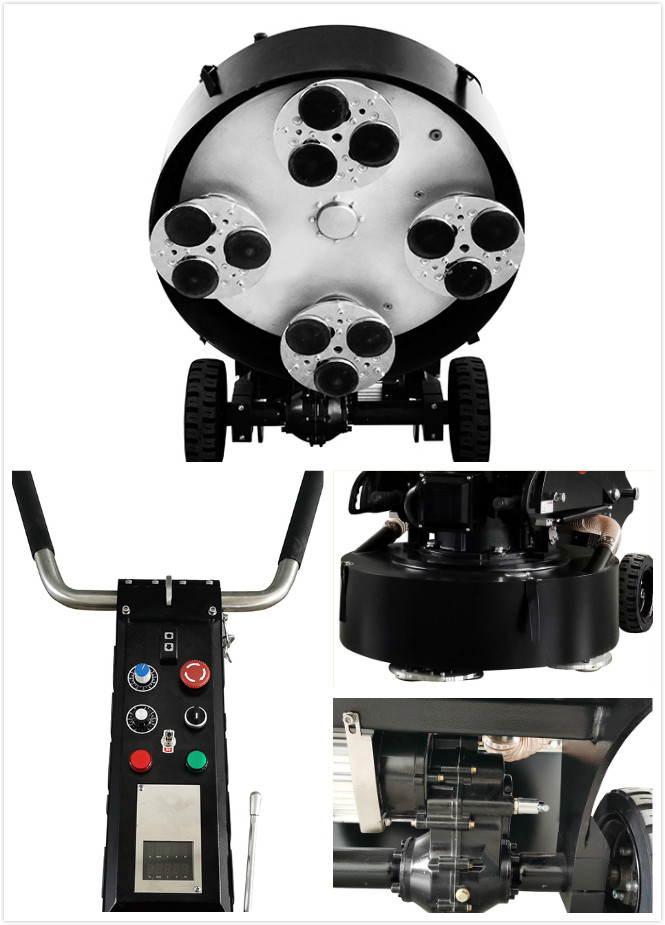

Product display

Four-head floor grinder and polisher Self-driven industrial floor grinder

Additional information

Weight N/A
Dimensions N/A

Manual

Loader Loading...
EAD Logo Taking too long?
Reload Reload document
| Open Open in new tab

Download [3.97 MB]

FB Product Number

EQ77034 LE 800 -240V Self-Propelled Floor Grinder 15kW 3 Phase – 4 Heads
EQ77035 LE 800 -240V Self-Propelled Floor Grinder 15kW 3 Phase – 3 Heads
